HYSM-Bead Mill

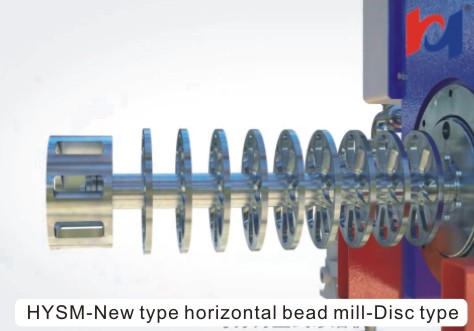

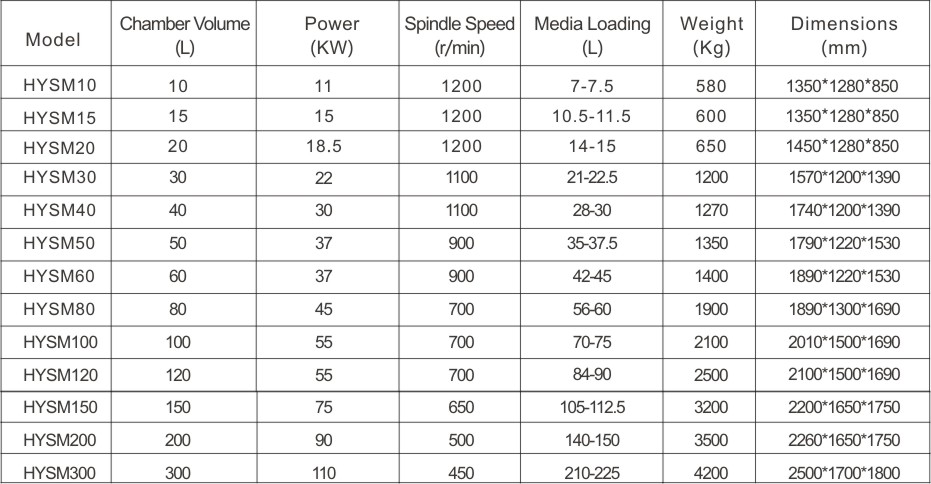

The dispersing device of HYSM disc bead mill is composed of a main shaft, a dispersing disc, a reflecting cage and a bushing. During operation, the mechanical energy generated by the rotation of the dispersing disc is transmitted to the grinding medium through the rotation of the main shaft, so that the material is ground and dispersed uniformly. A reflective cage is arranged at the front end of the main shaft to prevent the grinding medium from collecting at the discharge screen and causing wear on the screen. Huayun disc bead mill has a wide range of applications, and the grinding fineness can reach below 5 microns.Technical Parameters
(Note: Inverter with control cabinet suggested , if motor power is 30kw and above.Frequency conversion starts makes currency more stable,and machine will work in the most reasonable condition .)
Characteristics
1. Compact structure, easy to operate;
2. More advanced screen ensures high efficiency without blocking.
3. Wear-resistance milling tank, and different type for option.
4. Jacket type milling tank and double cooling system, ensure whole process under same temperature range.
5. Anti-explosion and PLC are optional.
6. Pressure and temperature are under control.

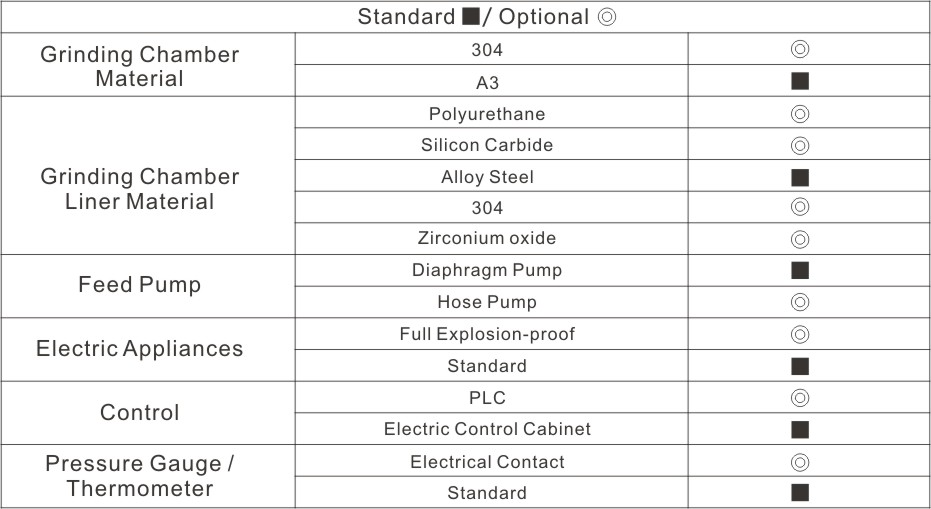

Specification Sheet
