HYBS-Bead Mill

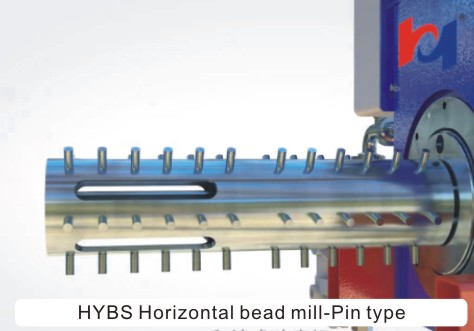

  The mixing parts of HYBS rod pin bead mill are rod pins. The rod pins are generally short and cylindrical. They are mounted on the hollow mixing shaft and combined with the horizontal grinding cylinder to form a high-density energy grinding chamber. The shaft drives the rod pin to perform high-speed operation. The rod pin drives the medium and the material to collide and grind. The material is subjected to strong impact force and high shear force, which makes the grinding dispersion effect more remarkable. It is suitable for grinding materials that are extremely difficult to disperse. Suitable for grinding ultra-fine nanoscale material with medium and high viscosity.

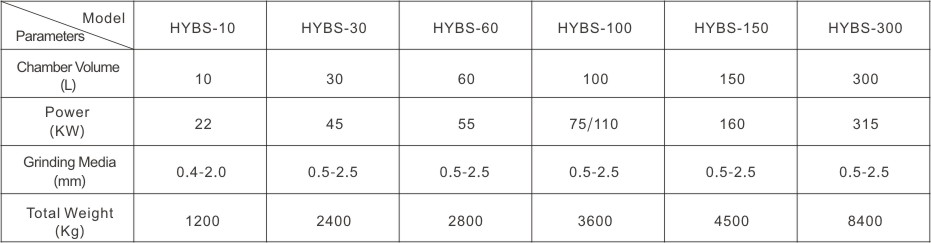

Technical Parameters

Characteristics

1. Compact structure, easy to operate;

2. Several pins clash medias hardly, force medias to mill and dispense materials quickly;

3. More advanced screen ensures high efficiency without blocking.

4. Wear-resistance milling tank, and different type for option.

5. Jacket type milling tank and double cooling system, ensure whole process under same temperature range.

6. Anti-explosion and PLC are optional.

7. Pressure and temperature are under control.

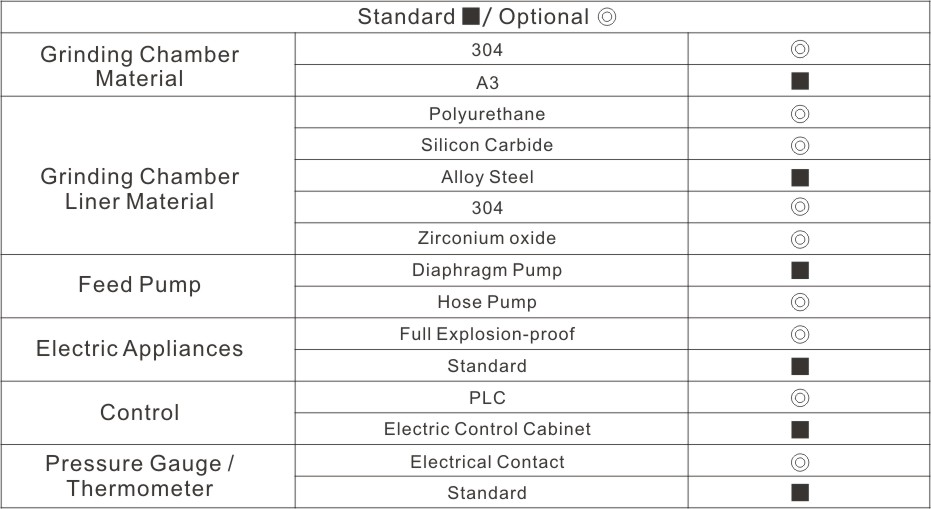

Specification Sheet
